Software Defined Radio RTL-SDR SDR DAB FM

Product ID: 102681

Brand new RTL2832 (aka RTL2832U) RTL-SDR R820T USB dongle. Can be used as a Software Defined Radio (SDR) scanner.

The RTL2832U outputs 8-bit I/Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s, however, the highest sample-rate without lost samples that has been tested so far is 2.8 MS/s. The frequency range is highly dependent of the used tuner, dongles that use the Rafael Micro's R820T offer possible range 48 - 863 MHz .

NOTE: The connector type on the antenna and USB board is MCX

FEATURES:

* Watch and record digital terrestrial TV on PC or Laptop
* Watch DVB-T digital TV and listen to DAB+ digital +FM +SDR radio
* Full DVB-T bandwidth reception (6/7/8 MHz)
* Still image snapshots
* Time-shifting
* Scheduled recording
* Digital TV recording and playback as DVD quality
* Support multi-picture display
* Support EPG (Electronic Program Guide)
* Support Teletext
* Support Microsoft BDA drivers
* Remote control
* Support Windows 2000/XP/Vista/WIN7/8
* Support both MPEG-2, MPEG-4(H.264) encoding

SPECIFICATIONS:

* USB2.0 Interface
* Terrestrial Antenna Input
* Dimensions: 90x32x12mm
* Weight: 32g

SYSTEM REQUIREMENTS:

* CPU: Pentium IV 1.8 GHz or above
* Operation System: Windows2000 ,xp/vista/windows 7/8/10
* DirectX9.0c or above
* 500M of available hard disk space or above
* CD-ROM Drive

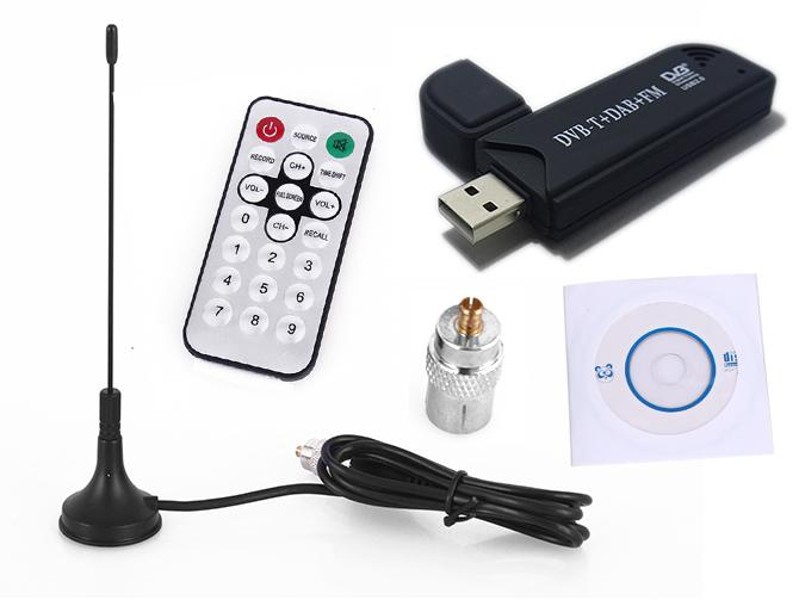

PACKAGE CONTENTS:

1 x USB DVB-T Stick
1 x Remote
1 x Antenna
1 x MCX->PAL F Adapter
1 x Freeview TV software

Tips:

There is plenty of information is available in the links below to get you started, but here is a video demo if you don't feel like reading:

http://www.rtl-sdr.com/

http://tinyurl.com/ozelom7
