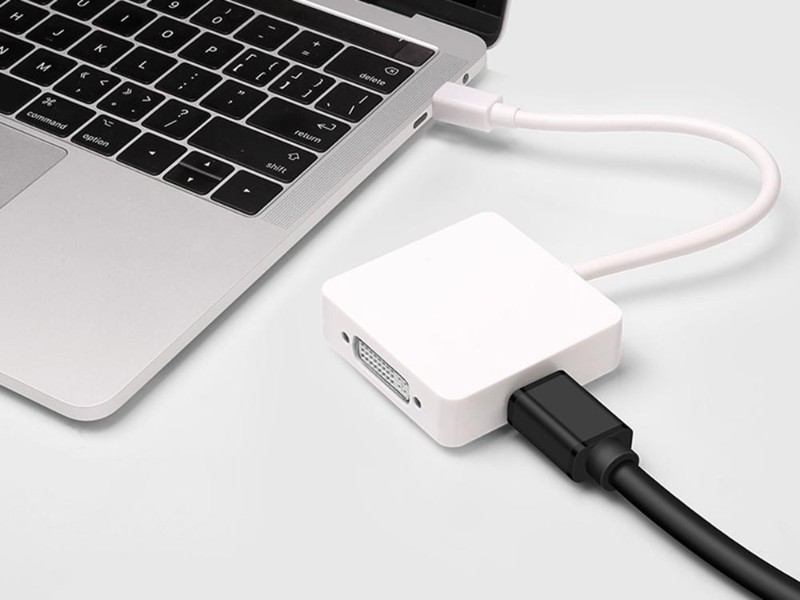

Mini Display Port to DVI VGA HDMI Adapter Cable

Product ID: 103991

FEATURES:

* Support Mini Display Port to HDMI signal conversion;

* Support Mini Display Port to DVI signal conversion;

* Support Mini Display Port to VGA signal conversion;

* Support up to 10.8Gbps video bandwidth;

* Support Mini DisplayPort1.1a input and HDMI1.3b output;

* Support HDMI up to 1080p (1920 × 1080) resolution;

* Support HDMI 225MHZ clock bandwidth, 2.25Gbps data bandwidth per channel (6.75Gbps data bandwidth for all channels)

* Support HMDI 12bit Deep Color (all channel 36bit Deep Color);

* Support uncompressed audio such as LPCM;

* The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010)

* Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color

* Automatic detect the display by plugging and unplugging it

* Powered from Mini Display Port source

* Compatible with: Mac Book Air, Mac Book Pro, iMac, and Mac mini or PC with mini display port are also supported.

SPECIFICATIONS:

* Condition: Brand New

* Color: White

* Cable length: Approx. 17cm

* Input Signal: Mini Display Port 1.1a

* Output Video: HDMI/DVI/VGA

* Input: Mini Display Port Male 20pin

* Output: HDMI Female Type A 19pin

* Connector: DVI Female (24+1) VGA Female 15Pin

* Vertical Frequency Range: 50/60Hz

* Video Amplifier Bandwidth: 2.25Gbps/225MHz

* HDMI/DVI/VGA: 480i/480p, 576p, 720p, 1080i/1080p

* External Power Supply: No external power needed

* Power consumption (Max): 700mW

* Product Size: approx 6.0 x 6.0 x 1.5 cm

* Package Size: Approx. 23.5 x 16 x 2cm(L x W x L)

* Gross Weight: Approx. 65g

PACKAGE CONTENTS:

1 x Mini Display Port to DVI VGA HDMI Adapter

NOTES:
You should assure that if your Mac has one of the following two kinds of port : mini DP port and Thunderbolt port.
