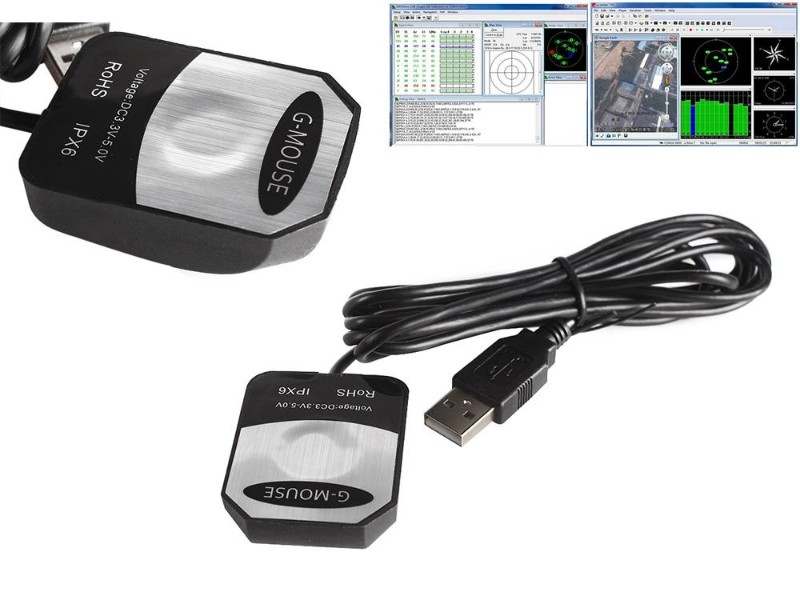

GPS Engine Board Module for Windows 7/8/10/Vista/XP/CE
Out Of Stock
- Price:
- NZ
- $13.39
- Ships from:
- Quantity:
-
- Free Delivery for Order Over $49
Product ID: 205863
The GPS module provides complete serial data message with position, velocity and time information at the serial interface with NMEA protocol or custom protocol. Its tracking sensitivity extends positioning coverage into place like dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, Ships, Marines, Cameras and Car vehicle navigation systems.
Application:
* Vehicle navigation and location based services
* PDA / Notebook navigation
* Distance Measurement
* Fleet Management
* Sports and Recreation
* Vehicle Tracking
* Google Earth
Positioning Performance:
* Maximum speed: 500 m/s
* Maximum altitude: 18,000 m
* Reference coordinate system: WGS 84
* Timing Accuracy: 1us
* 2D plane: 3.5 - 5m (avg)
* Interface: USB
SPECIFICATIONS:
* Condition: Brand new
* Material: ABS
* Color: Black
* Tracking Channels: 50
* Power: 5V DC 45mA
* Frequency: L1 1575.42 MHz
* C/A Code: 1.023 MHz chip rate
* Tracking Sensitivity: -160dBm
* GPS Output Data: GGA, GSA, GSV, RMC, VTG, GLL
* Size (LxWxH): Approx. 38 x 49 x 16mm
* USB Cable Length: Approx. 2m
* Waterproof Rating: IPX6
* Compatible with: Windows 7/8/10/Vista/XP/CE
PACKAGE CONTENTS:
1x GPS Engine Board Module
