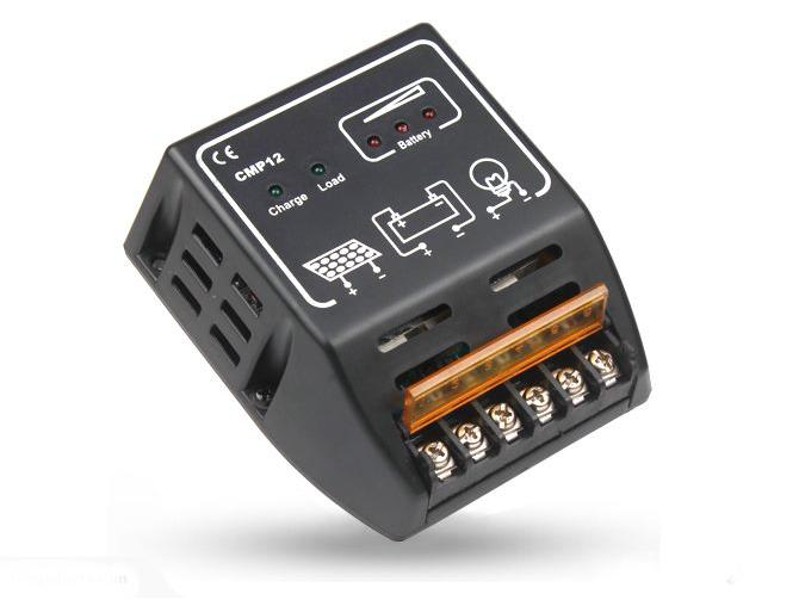

12V / 24V 10A PWM Solar Controller

Product ID: 102931

This product can automatically manage the work of solar panel and battery in solar system. It is widely used in solar system for gardens, pools, roads, stages, etc

FEATURES:

* Short circuit protection

* Over-load protection

* Over charge and discharge protection

* Under voltage protection

* Reverse discharging and reverse-polarity protection

SPECIFICATIONS:

* Material: Plastic + electronic components

* Max Current: 10A

* Working temperature: -20°to +55°

* Product dimensions: 10.2 x 9.5 x 3.5cm (LxWxH)

* Package dimensions: 11x10.5x4.7cm (LxWxH)

* Method of Operation:

Open the top cover of controller and connect the wire and terminals of controller according to the drawing.

1. Connect the “+”, “-” poles of the battery to the correct ports of controller (the third and the fourth one from left). If load indicator (mark: load) flickers once and starts lighting after 15-30 seconds, you can tell the connection is connect; the following operation can be proceed, otherwise, the following operation may damage the controller.

2. Connect the “+”, “-” poles of the solar panel to the correct ports of controller (the first and the second one from left).

3. Connect the “+”, “-” poles of the load to the correct ports of controller (the fifth and the sixth one from left).

4. The battery is being charged strongly when the charge led is lighting; flickering means the battery is in floating charge mode. If it's off, that means charging stopped.

5. When the load led is lighting, it means there is output and load can work. If it's off, there isn't output and the load cannot work.

PACKAGE CONTENTS:

1 x Solar Controller
1 x Manual

NOTE:

1. Please make sure the rated voltage of solar panels, batteries and the loads are same and are all 6V or all 12V or all 24V.
2. The rated current of solar panels and loads must be less than the rated current of controller.
